[p0losprt]

Here it is



[K20actr.J]

Motor: EP3 K24A2 (2006)
Header: Type S PLM
Cams: Proyoonto 2
Intake: Injen 3.5 SRI
Exhaust: 2.5in crushbent
Tranny:Ep3 5 speed.
Misc Mods: Rbc/Type S pump/70mm tb/rdx 410cc/

https://www.youtube.com/watch?v=7_uIHg1BA1E

232whp/180tq

broken mount/tps high voltage issues/mid tuned.

maby you must change the intake.on the road heat temperature from engine bay running inside of intake



[KhizWhiz]

Motor: k20z1
Header: Hytech
Cams: stock
Intake: RRC IM/Injen CAI
exhaust: 3inch Kteller piping/Magnaflow resonator 18x6(3 inch inlet/outlet straight through)/Apexi WS NOIR muffler (80mm)
Tranny: stock z1
Misc Mods: IMG
Track info: No track info.

232hp 166trq

Tuned by Jeff Evans



[LotusElise]

Cams: stock
Intake: RRC IM/Injen CAI
Misc Mods: IMG
232hp 166trq
Tuned by Jeff Evans

Hi KhizWhiz, welcome to the best K-series Forum .

Thanks for posting your engine data here. I like the tunes of Jeff Evans, he do very good work form a external view! For my understanding IMG means, you just bought a copy of a general mild K20Z1 tune from evans-tunning.com and got it dyno'd there?

How does it feel right now after the tune? Any further plans for the engine/car?



[KhizWhiz]

Hi KhizWhiz, welcome to the best K-series Forum .

Thanks for posting your engine data here. I like the tunes of Jeff Evans, he do very good work form a external view! For my understanding IMG means, you just bought a copy of a general mild K20Z1 tune from evans-tunning.com and got it dyno'd there?

How does it feel right now after the tune? Any further plans for the engine/car?

Hi thanks for the welcome!

I apologize I don't quite understand your question. My understanding was IMG stood for intake manifold gasket.

I put a deposit down for a tune and Jeff sent me a basemap upon request - I had to drive to and from work the week leading up to the tune so he adjusted everything accordingly just to get down to him safely.

The car feels excellent! I just came from a race header reflash so it doesnt have that initial kick when vtec engages - but now the car sounds and feels very....healthy if you will. It pulls hard and evenly throughout the entire band - low end and mid range feel VERY different much more responsive than before. That was my primary goal for more practical DD car.

I plan on going back to a local shop where I had 2 baseline dynos before and am hoping for a more accurate number.

For future mods - I wasn't too sure and where to go next, still have a lot of research ahead of me. But I asked Mr.Evan's advice and he recommended k24 block before anything else, so thats what I will be pursuing early next year.

As for Jeff Evans and the business he runs - couldn't have been a nicer guy, answered all the noob questions that I had, excellent customer service all round - I would not hesitate to recommend him to anyone. I live in New England made a 5 hr drive to get to him.

I hope this answers your questions!



[redgsrguy]

Motor: k24a2/k20a2
Header: Ebay Special
Cams: DC 3.2
Intake: RRC / Karcepts w/Blox V-stack
Exhaust: 2.5"
Tranny: k20z3
Misc Mods: 91 oct / Kpro / Blox 70mm TB / Portflow head / Supertech 12.5:1
Track info: 11.6 @ 116 / dc2r / MT 24.50 x 8.00-15

253/185

RRC setup was used for the 1/4 pass.

<iframe width="560" height="315" src="https://www.youtube.com/embed/eJ05x8Ix69Q" frameborder="0" allowfullscreen></iframe>



[LotusElise]

Thanks, yes it answered my questions

My understanding was IMG stood for intake manifold gasket.

forgot you guys in US call the intake manifold gasket by acronym IMG...sorry, I thought of an copy of a calibration, an image .

The car feels excellent! I just came from a race header reflash so it doesnt have that initial kick when vtec engages - but now the car sounds and feels very....healthy if you will. It pulls hard and evenly throughout the entire band - low end and mid range feel VERY different much more responsive than before. That was my primary goal for more practical DD car.

That's good to hear! That's was what I have assumed after I saw that smooth torque line...a lot of tuners don't smooth out the VTC, they keep steps there and let the VTC mechanism do it's "smooth work" due to rotation time. That's ok for WOT acceleration but in daily driving, where WOT acceleration is just around 5 % of the time there is a sensible difference in driving feeling.

For future mods...I asked Mr.Evan's advice and he recommended k24 block...so thats what I will be pursuing early next year.

A Frankenstein build sounds good , a cost effective solution...do you keep the engine for the DD? Or do you have further plans for drag or endurance racing?



[KhizWhiz]

Thanks, yes it answered my questions


forgot you guys in US call the intake manifold gasket by acronym IMG...sorry, I thought of an copy of a calibration, an image .


That's good to hear! That's was what I have assumed after I saw that smooth torque line...a lot of tuners don't smooth out the VTC, they keep steps there and let the VTC mechanism do it's "smooth work" due to rotation time. That's ok for WOT acceleration but in daily driving, where WOT acceleration is just around 5 % of the time there is a sensible difference in driving feeling.


A Frankenstein build sounds good , a cost effective solution...do you keep the engine for the DD? Or do you have further plans for drag or endurance racing?

Hahaha easy mistake - are you from across the pond?

The car will primarily be a DD, eventually when I have more free time I plan to pursue heavier track/autocross days

as for the z1 block I plan to build it to Type R spec for high revving and hopefully down the road boost along with it. and just swap them out when I blow one and rebuild lol.

I am just taking it year by year so far, so I'm sure it will change but that is the eventual goal



[delslo9]

This is a bit older but I figured I would post it to add to the database

K24a1 bottom end
K20a2 oil pump
K20a2 head, cams, intake manifold & throttle body
PLM 4-1 K-swap race header (no megaphone)
3" exhaust to magnaflow camaro muffler then 2.5" dual outlet (mr2 spyder)
2.5" (maybe?) short ram
Tuned by me

Before and after tuning (except fuel) on a mustang dyno (forgot torque numbers). Hi cam loved 30*VTC for the whole table.
Before 202whp
After 212whp

Before and After on a dynojet (1 year apart)



[sportsman1539]

06 k24a2 block and head in 95 ex civic coupe
Supertech 12.5:1 pistons
stock tsx rods
stock 06 tsx cams
50 degree vtc gear
type s oil pump
skunk2 70mm throttle body
rrc port matched to tb
hybrid racing swap intake
modified oem injectors flow 500cc
k tuned big tube header
3' mandrel bent exhaust with 3" vibrant ultra quiet resonator and 3" straight through magnaflow muffler

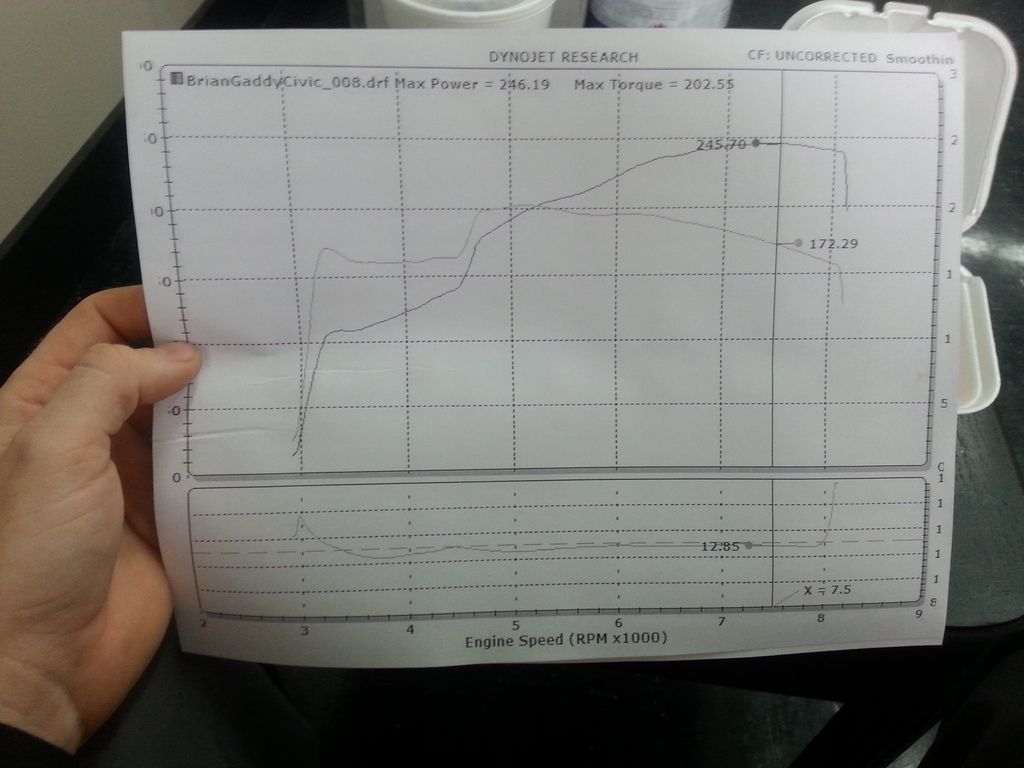

246hp/203 tq on pump 93



[Hooked_on_k]

Hi guys I have a k24 ek hatch 97 the problem I have is with my rpm it suddenly stopped working on my type r cluster. Everything else works fine I even tried using another type r cluster and it gave me the same problem. I tried unplugging the cables from the cluster, checked my grounds and voltage that go on the cluster harness I have no reading on the green tach wire I know that maybe the problem the question Is how do I fix it..



[Hooked_on_k]

Hi guys I have a k24 ek hatch 97 the problem I have is with my rpm it suddenly stopped working on my type r cluster. Everything else works fine I even tried using another type r cluster and it gave me the same problem. I tried unplugging the cables from the cluster, checked my grounds and voltage that go on the cluster harness I have no reading on the green tach wire I know that maybe the problem the question Is how do I fix it..



[sportsman1539]

why are you asking this question on a dyno thread?



[Hooked_on_k]

My bad I'm new here I just need some answers ..



[Kingnacho83]

Hey guys just curious whuch cams are better to install in my k24a4/ k20a2 head? I have 08 civicsi z3 or 04 tsx cams.I am running 11:0:1 cp. I know 06+tsx is better but its between these two only.



[spanishstud]

1995 Honda del Sol si
2002 Acura RSX-S 80k

All-In Big tube header
3" Mandrel Bent piping
3" Turndown KTuned muffler
RBC Port matched
80mm KTuned TB
Hondata IMG
RDX Injectors
Walboro 255

226WHP 158TQ



[Cypress_coupe]

K24a2 bottom end: stock oil pump and internals
K20z3 head: all stock cams and 50*vtc
Rbc manifold, hybrid racing 70mm tb, rdx410cc injectors, hybrid racing intake, rcrew header to full 3"exhaust, 255lph fuel pump tuned on kpro
Made 237whp and 197 tq

Image is of old tune made 233 with dc sports kswap header and crappy exhaust, stock si injectors and stock 98 civic fuel pump



[CHILD]

K20/k24 88x99

Mild hand port PRB head
4piston K600 cams
50* VTC
K-Tuned intake manifold
K-Tuned 90mm TB
3.5" CAI
K-Tuned big tube header
3" exhaust

2006 TSX block
88mm 12.5:1 supertech pistons
stock '06 TSX rods
PRB oil pump
650cc DPI injectors

295whp on 93 pump gas (previous torque output was 210 before tuning VTC, I'd expect it to be slightly higher if not the same for peak tq)



[LotusElise]

Interesting engine setup

K20/k24...port PRB head...4piston K600 cams...50* VTC...K-Tuned intake manifold...88mm 12.5:1...295whp on 93 pump gas...

Hi CHILD, this is a really awsome result with that setup. Which gear ratio or stock gear box did you choose for the power plant? Just curious about torque curve, want to calculate it...if you don't have it .



[CHILD]

Re: Interesting engine setup

Hi CHILD, this is a really awsome result with that setup. Which gear ratio or stock gear box did you choose for the power plant? Just curious about torque curve, want to calculate it...if you don't have it .

DC5 R gears. peak torque was around 4800 or so on all my previous pulls with the rpm pickup working on the dyno.
