I would like to install a 2001 Toyota MR2 electric Hydraulic Steering Pump

Reference link - Aspiration :
http://honda-tech.com/showthread.php?p=38032107
http://k20a.org/forum/showthread.php?t=12251
http://www.evalbum.com/tech/mr2_powersteering.html
http://www.driveev.com/jeepev/convpgs/psteer.php

My car :

All details :

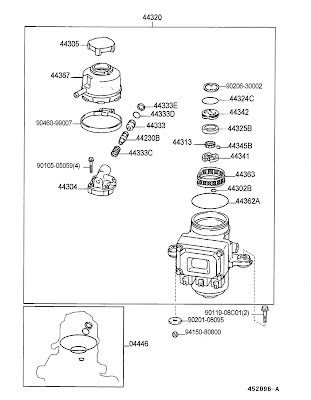

Pump => EHPS MR2 Spyder Toyota 2000 to 2005
250 $
eBay Motors - Autos, Used Cars, Motorcycles, Boats, Trucks, Parts, Accessories, RVs and Other Vehicles

Connection on steering (Integra 94-01)
M14-1.5mm

Connection on pump M16 par 1.5mm

High Pressure hose - 6 AN Each Extremity
Tank you to Karcepts Engineered Solutions - Home
80 $ US

Two Fitting
Russel Brand
RUS-670531 - Russell Fitting, Straight, AN Flare to Metric, Aluminum, -6 AN to 16mm x 1.5 Male - Qty=1
RUS-670521 - Russell Fitting, Straight, AN Flare to Metric, Aluminum, -6 AN to 14mm x 1.5 Male - Qty=1

You need a Bracket to hold in place the MR2 Pump
This bracket is good for all Civic 96-00 with a K20/k24
Pump Bracket

Laser cutting

Installation de la Pompe sur la braket

Paint job 10 $

Rad 65$
Summit Racing - High Performance Car and Truck Parts | 800-230-3030

For the fluid return, you could opt to go with a stock setup, but the cost of the parts just for a mediocre return did not seem to be worth it. I opted to get some 3/8" I.D. hose and utilize a $40 oil cooler from Perma-Cool Industries. P/N: 1007

Rad. installation

Pump installation

Honda Accord 91-93, ABS modul

Diagram

From Honda-tech See my link aspiration

Electro-Hydraulic Power Steering (EHPS) Conversion
Pump Pin-Out Wiring
See the attached schematics for more details.
Click here for P/S Schematic

Fuse Box Pin-Out Wiring (91-93 Honda Accord ABS)
You won’t need the rest of the lower amp fuses.
Chick here for Fuse Box Schematic

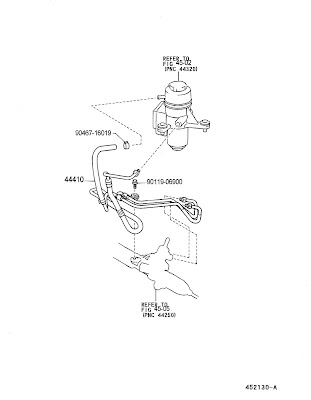

MR2 Diagram:

Oil 6.50$ Cad (2 fois)

Resume - Pricing
Pump : 250$
Hose : 80 $
Fitting : 30 $
Radiateur : 65 $
Huile : 15 $
Bracket : Around 100$
Total : 540 $ and I win 8 HP! lol
