Discussion Starter · #1 ·
DISCONTINUED PRODUCT LIST

please list parts here as you find them if they are not added to the list.



92-01 GSR




96-01 DC2r



02-04 DC5 Types


#4 Bolt, Special (6X33.6) - Acura (90021-PNA-000)
Bolt, Special (6X33.6) - Acura (90021-PNA-000)


#1 Camshaft, In - Acura (14110-PRB-A00)

DISCONTINUED PRODUCT

Camshaft, In - Acura (14110-PRB-A00)




However there is still an active part number for the 02 PRB intake cam.
# 1 Camshaft, In - Acura (14110-PRB-A02)


--
# 7 Bolt A, Head Cover - Acura (90011-PNA-003)
DISCONTINUED PRODUCT



Bolt A, Head Cover - Acura (90011-PNA-003)

--


# 2 Cover, Cylinder Head - Acura (12310-PRB-505)
  • Cover, Cylinder Head - Acura (12310-PRB-505)
  • Cover, Cylinder Head - Acura (12310-PRB-505)
  • Cover, Cylinder Head - Acura (12310-PRB-505)

Cover, Cylinder Head - Acura (12310-PRB-505)
--

# 1 General Assembly, Cylinder Block - Acura (10002-PRB-A04)
DISCONTINUED PRODUCTGeneral Assembly, Cylinder Block - Acura (10002-PRB-A04)
--
# 1 Cover Assembly, Engine - Acura (17121-PRB-A11)
DISCONTINUED PRODUCTCover Assembly, Engine - Acura (17121-PRB-A11)
  • Cover Assembly, Engine - Acura (17121-PRB-A11)
  • Cover Assembly, Engine - Acura (17121-PRB-A11)
Cover Assembly, Engine - Acura (17121-PRB-A11)
-
-

Manifold, Ex - Acura (18100-PRB-A01)
Pulley, Power Steering Pump - Acura (56483-PND-003)

Pulley, Power Steering Pump - Acura (56483-PND-003)



  • Manifold, Ex - Acura (18100-PRB-A01)

#1 Gasket Kit, Cylinder Head - Acura (06110-PRB-A00)
Gasket Kit, Cylinder Head - Acura (06110-PRB-A00)
-
-


# 2 Pipe, Install - Acura (17400-PRB-A00)
DISCONTINUED

Pipe, Install - Acura (17400-PRB-A00)
-
-

# 12 Stay, In Manifold - Acura (17125-PRB-A00)
# 3 Pipe, Fuel - Acura (16620-PRB-A01)
# 10 Cover, In Manifold - Acura (17101-PRB-A00)
DISCONTINUED

Stay, In Manifold - Acura (17125-PRB-A00)


--
-
# 4 Pulley, Power Steering Pump - Acura (56483-PND-003)
Pulley, Power Steering Pump - Acura (56483-PND-003)

-
-

# 8 VTC SENSOR O-Ring - Acura (15832-PNA-023)

# 8 Switch Assembly, Magnet - Acura (31204-PRB-A11)
--

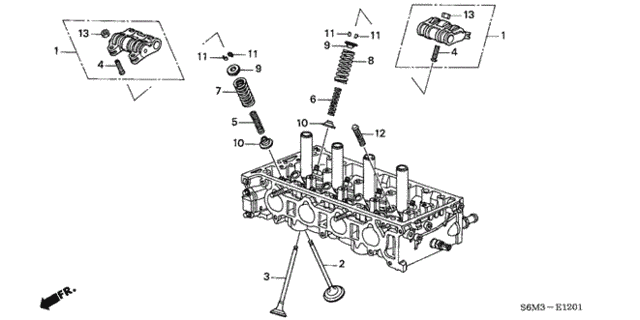

# 5 Spring, In Valve (Inner) (Blue) (Nippon Hatsujo) - Acura (14751-PRB-A01)

Spring, In Valve (Inner) (Blue) (Nippon Hatsujo) - Acura (14751-PRB-A01)
--

Passage, Water - Acura (19410-PRB-A00)



-







05-06 DC5 Types



02-06 DC5 Typer

06-11 Civic SI


·
Premium Member
Joined
·
908 Posts
Discussion Starter · #2 ·
05 06 types

#1 Camshaft, In - Acura (14110-PRC-030)
Camshaft, In - Acura (14110-PRC-030)


--

#5 Camshaft, Ex - Acura (14120-PRC-030)

Alternator Assembly (CJX68) (Denso) - Acura (31100-PRB-013)

Case Assembly, Chain - Acura (11410-PNC-000) ** Contact for availability at oem parts store**

#4 Joint, Oil Cooler - Acura (11107-PRB-A01)

Joint, Oil Cooler - Acura (11107-PRB-A01)

Cover, Cylinder Head - Acura (12310-PRB-A04)
--
#1 General Assembly, Cylinder Block - Acura (10002-PRB-A04)
# 3 Bare, Transmission Assembly - Acura (20011-PNS-355)
General Assembly, Cylinder Block - Acura (10002-PRB-A04)


--

Cover Assembly, Engine - Acura (17121-PRB-A11)


  • Cover Assembly, Engine - Acura (17121-PRB-A11)
--
Stay, Ex Manifold - Acura (11942-PRB-A00)
  • Stay, Ex Manifold - Acura (11942-PRB-A00)
--
Gasket Kit, Cylinder Head - Acura (06110-PRB-A00)
Stay, In Manifold - Acura (17125-PRB-A00)
#3 Pipe, Fuel - Acura (16620-PRB-A01)

Pipe, Fuel - Acura (16620-PRB-A01)


--
Pump Assembly, Oil - Acura (15100-PRB-A01) ** Contact for availablity 10/3/2021 ** this is reported to not be true on other oemparts stores.
--
Pump Sub-Assembly, Power Steering - Acura (56110-PND-A02)
Starter Motor Assembly (Dsdhl) (Denso) - Acura (31200-PRB-A11)


Stay, Harness - Acura (21224-PNS-000) transmission top
#9 Lever, Select - Acura (24460-PNS-000)

Lever, Select - Acura (24460-PNS-000)


--


·
Premium Member
Joined
·
908 Posts
Discussion Starter · #3 ·
02 06 dc5 typer

1) PN# 17520-S5A-931 Stay, Fuel Tank Protector
Product Organism Font Line Auto part

--
2) PN# 17125 -PRB-A00 Stay Comp, Intake Manifold
3)
131100-PRB-013A.C.GENERATOR ASSY. (CJX68) (DENSO)DISCONTINUED
4)
11000-PRC-800BLOCK ASSY., CYLINDER (K20A)DISCONTINUED
111000-PRC-801BLOCK ASSY., CYLINDER (K20A)
5)
11000-PRC-801BLOCK ASSY., CYLINDER (K20A)
6)
19410-PRB-A00PASSAGE ,WATER
7)
13021-PNA-014RING SET, PISTON (OS 0.25) (RIKEN)
8)
13021-PRA-E02RING SET, PISTON (OS 0.25) (RIKEN)
9)
24460-PNS-000LEVER COMP., SELECT
10)


·
Premium Member
Joined
·
908 Posts
Discussion Starter · #4 ·
06-08 K24a2

#4 Bolt, Special (6X33.6) - Acura (90021-PNA-000)
Bolt, Special (6X33.6) - Acura (90021-PNA-000)

--
#5 Converter, Torque - Acura (26000-RAA-416)
Converter, Torque - Acura (26000-RAA-416)


--

#8 Bolt A, Head Cover - Acura (90011-PNA-003)


Bolt A, Head Cover - Acura (90011-PNA-003)

--
#2 General Assembly, Cylinder Head - Acura (10003-RBB-A01)
#3 Transmission Assembly (Mt) - Acura (20011-RAS-U51)
General Assembly, Cylinder Head - Acura (10003-RBB-A01)


--
VTC sensor O-Ring - Acura (15832-PNA-023)


·
Premium Member
Joined
·
908 Posts
Discussion Starter · #5 ·
02-04 dc5 types

ABS Modulator Assembly - Acura (57105-S6M-J00)

ABS Bracket, Modulator - Acura (57115-S6M-010)
# 6 Pipe C, Brake - Acura (46330-S6M-000)
# 13 Pipe Z, Brake - Acura (46379-S6M-A02)
# 26,27 Bracket, L Rear Brake Hose - Acura (46438-S5A-J00)
# 17 Clip, Brake Pipe - Acura (46391-S6M-000)
# 18 Clip, Brake Pipe - Acura (46391-S6M-000)


-- Power Set, Master (7"+8") - Acura (01469-S6M-A50)

-- Clutch, Master Cylinder Fluid Bracket Holder, Tank - Acura (46966-S6M-A02)

-- OEM Rubber Hose Bracket A, Clutch Pipe - Acura (46995-S6M-A01)

# 27 Bolt-Washer (8X25) - Acura (93406-08025-08)
# 17 Damper, Dynamic - Acura (44351-S6M-901)

-- Shock Absorber Assembly, L Front - Acura (51602-S6M-A58)
-- Shock Absorber Assembly, R Front - Acura (51601-S6M-A58)
-- Shock Absorber Unit, L Front - Acura (51606-S6M-A54)

-- Spring, Front Stabilizer (23.0MMXT2.8) - Acura (51300-S6M-003)
-- Arm, L Front (Lower) - Acura (51360-S6M-A02)
-- Stiffener A, Steering Rack - Acura (53435-S6M-A00)
-- Stiffener B, Steering Rack - Acura (53439-S6M-000)
-- Arm R Front (Lower) - Acura (51350-S6M-A02)

-------------------------------------------------------------------------------------------------------------------------
-- # 4 Bracket, R Gear Box - Acura (53438-S6M-A01)
-- # 2 Bracket B, Steering Rack - Acura (53434-S6M-A00)
-- # 17 Collar, Steering Gear Box Mounting (A) - Acura (53686-S7A-000)




View attachment 105967
-----------------------------------------------------------------------------------------------------------------------------

-- # 36 Pipe B, Cylinder - Acura (53671-S6M-A51)
-- # 13 Guard, Boot - Acura (53446-S7A-003)
-- # 35 Pipe A, Cylinder - Acura (53670-S6M-A51)
-- # 24 Housing, Steering Rack - Acura (53608-S6M-A01)
-- # 28 Housing, Valve - Acura (53645-S6M-A51)
-- # 27 Valve Sub-Assembly, Steering - Acura (53641-S6M-A52)

-- # 26 Rack, Steering - Acura (53626-S6M-A52)
-- # 25 Cylinder - Acura (53611-S6M-A51)






View attachment 105968

--
# 18 Stay, Power Steering Return Hose - Acura (53772-S6M-A00)
# 9 Pipe, Power Steering - Acura (53730-S6M-000)

-- Lever Assembly, Parking Brake NH167L (Graphite Black) - Acura (47105-S6M-023ZA)
-- Pedal Assembly, Clutch - Acura (46900-S6M-A51)
-- Shock Absorber - Acura (52620-S6M-N04)

-- Steering Wheel Grip YR232L (Leather) (Dark Titanium) - Acura (78501-S6M-A91ZB)

-- Steering Wheel Grip NH167L (Leather) (Graphite Black) - Acura (78501-S6M-A91ZA)

-- Cap A, Body Cover YR232L (Dark Titanium) - Acura (78514-S2A-A61ZB)


·
Premium Member
Joined
·
908 Posts
Discussion Starter · #6 ·
06-11 Honda Civic SI (K20Z3 engine)

The K20Z3 engine's alternator assembly has zero parts on discontinued status.

-- Timing Cover Bolt, Special (6X33.6) - Acura (90021-PNA-000) ** bottom left hand bolt**
-- VTC Oil Control Valve Assembly O-Ring - Acura (15832-PNA-023)


·
Premium Member
Joined
·
908 Posts
Discussion Starter · #7 ·
02-04 TypeS

-- #5 Wire Harness, Instrument - Acura (32117-S6M-A20)
-- #2 Wire Harness, Rear - Acura (32108-S6M-A00)
-- #4 Sub-Wire, License - Acura (32113-S6M-A00)
-- #7 Wire, Interior & Sunroof - Acura (32155-S6M-A10)
-- #9 Wire, Rear Defroster Coil - Acura (32202-S6M-000)
-- #10 Cable, Sub-Ground - Acura (32610-S6M-000)
-- #11 Wire Harness, Driver Door - Acura (32751-S6M-A00)
-- #12 Wire Harness, Passenger Door - Acura (32752-S6M-A00)


Wire Harness, Instrument - Acura (32117-S6M-A20)

Gear - Acura (78415-S7A-G01)
Gear - Acura (78415-S7A-G01)

--
#4 Gear Set, Second - Acura (23432-PNS-405)
Gear Set, Second - Acura (23432-PNS-405)

#6 Gear, Main-Shaft Fifth - Acura (23580-PNS-000)
Gear, Main-Shaft Fifth - Acura (23580-PNS-000)

#7 Gear, Main-Shaft Sixth - Acura (23590-PNS-000)
#8 Sleeve Set, Synchronizer (5-6) - Acura (23626-PNS-405)



-- #8 Circlip (Outer) (35MM) - Acura (38914-P06-006)
-- #5 Protector Set, Thermal - Acura (38908-PND-006)
Circlip (Outer) (35MM) - Acura (38914-P06-006)
Bar, Front Strut - Acura (74180-S6M-L00)
--
-- AC Bracket, Liquid Tank - Acura (80352-S5A-000)
-- AC Stay A, Suction Hose - Acura (80361-S6M-000)
-- AC Stay B, Suction Hose - Acura (80362-S6M-000)
-- AC Cover, Air Conditioner Pipe - Acura (80465-S7C-G01)
-- AC Sensor Assembly, In Car YR232L (Dark Titanium) - Acura (80530-S6M-A41ZB)
-- AC Sensor Assembly, In Car NH167L (Graphite Black) - Acura (80530-S6M-A41ZA)
-- AC Bracket, Ambient Sensor - Acura (80521-S6M-940)
--
Handle Assembly, R Front Inside YR232L (Dark Titanium) - Acura (72120-S6M-A01ZB)

  • Handle Assembly, R Front Inside *YR232L* (Dark Titanium) - Acura (72120-S6M-A01ZB)

Cap, R Inside Handle YR232L (Dark Titanium) - Acura (72121-S6M-003ZB)
Bracket, Transmission Mounting - Acura (50825-S7C-000)
Rod, Rear Arm Performance (Lower) - Acura (74350-S6M-Z00)

5.0 star rating1 Review



  • Rod, Rear Arm Performance (Lower) - Acura (74350-S6M-Z00)
--



--
