First off I would like to thank each and everyone that either sold me parts or taught me what I needed to learn to do this. This has been a very exciting 11 months since I went and purchased my K24a1 block and started piecing this swap together since....And for Nikos for running such a clean website for us to have here:up:

What i'm workin with:

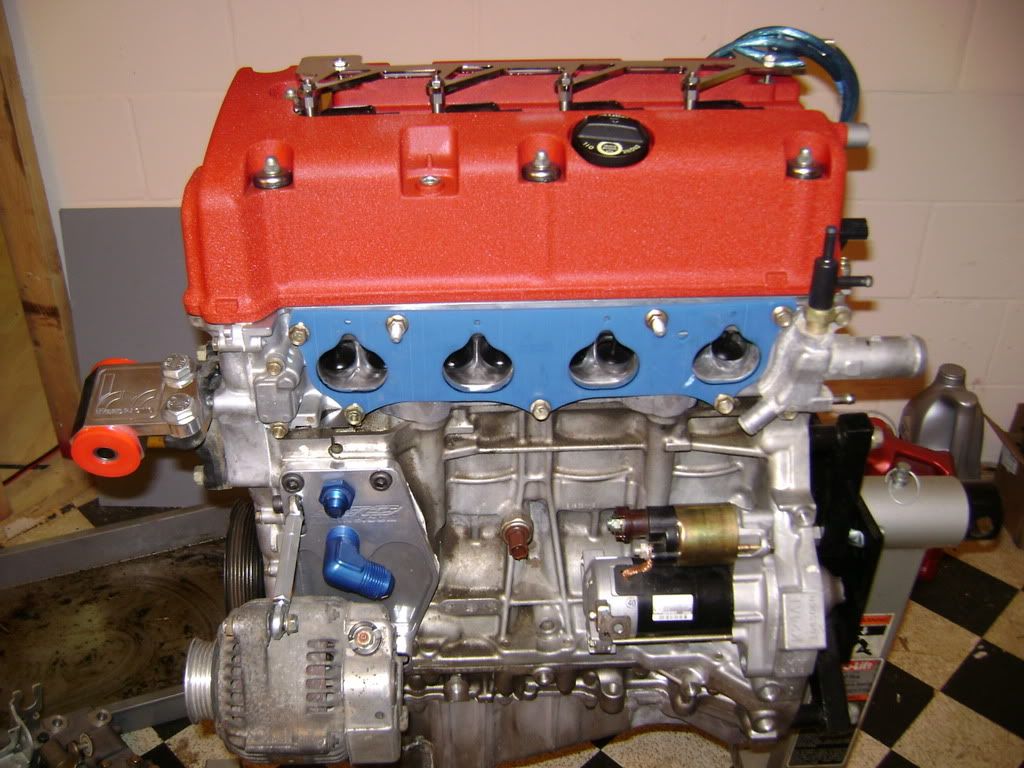

K24a1 22K miles

K20a2 head and intake manifold 17K miles
BDL 66mm TB

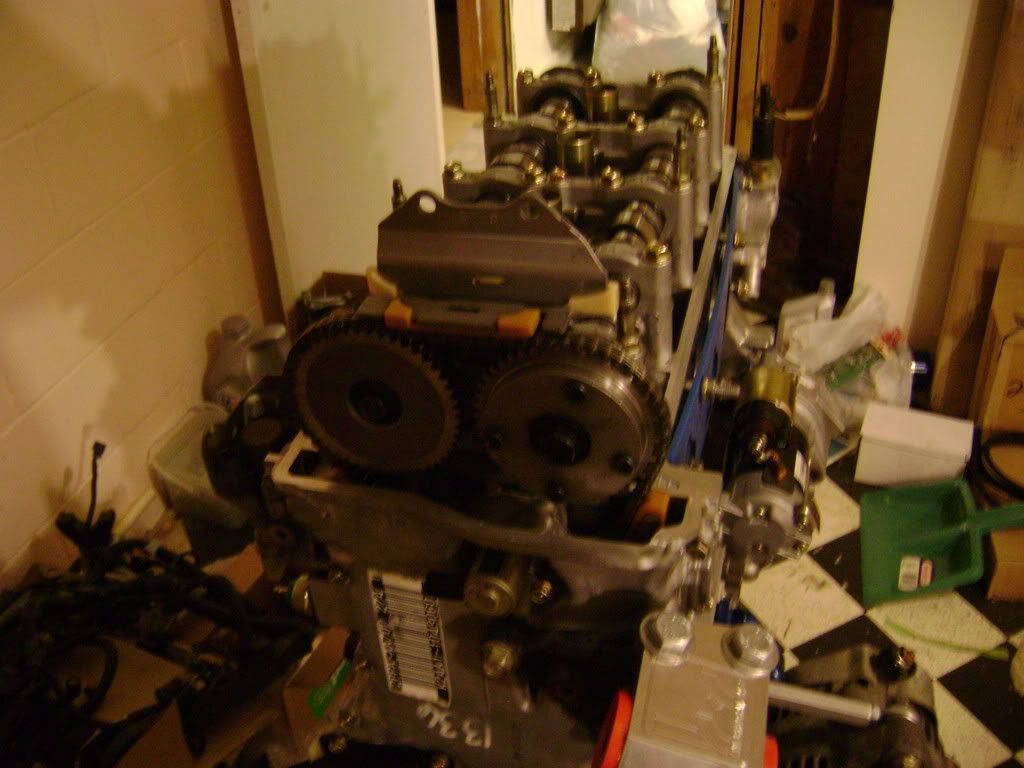

K20A2 Oil pump, oil chain, and windage tray{new}
Floored Fab lower timing chain guide

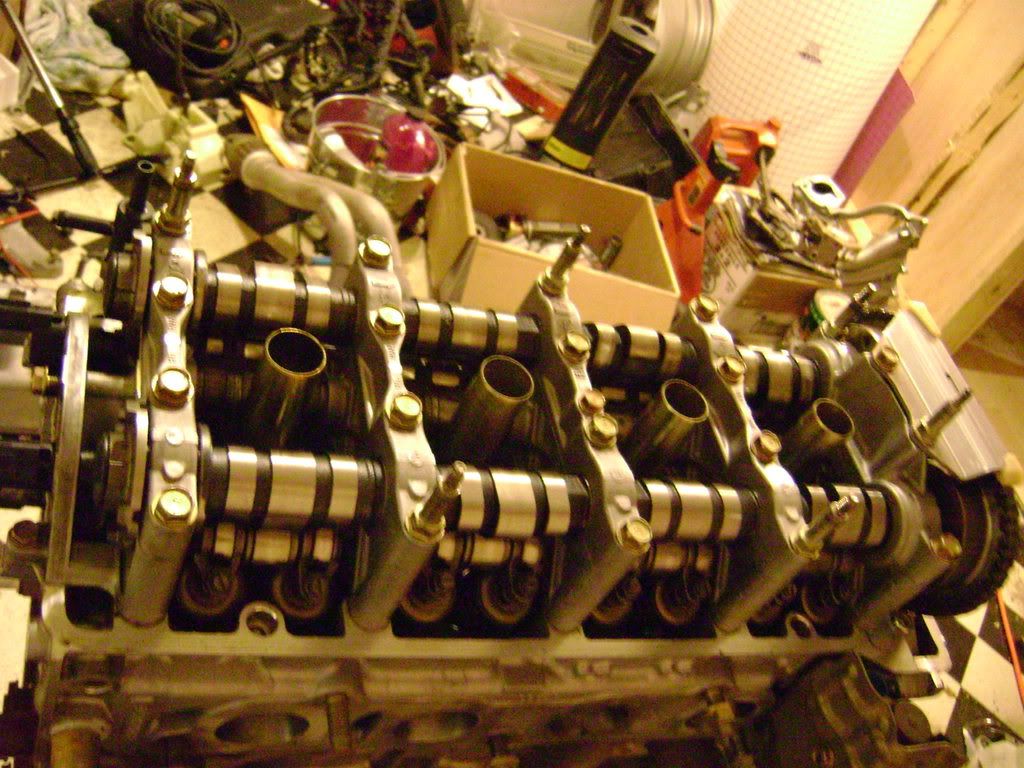

Type-S Intake cam and TSX Exhaust cam
Hondata IMG

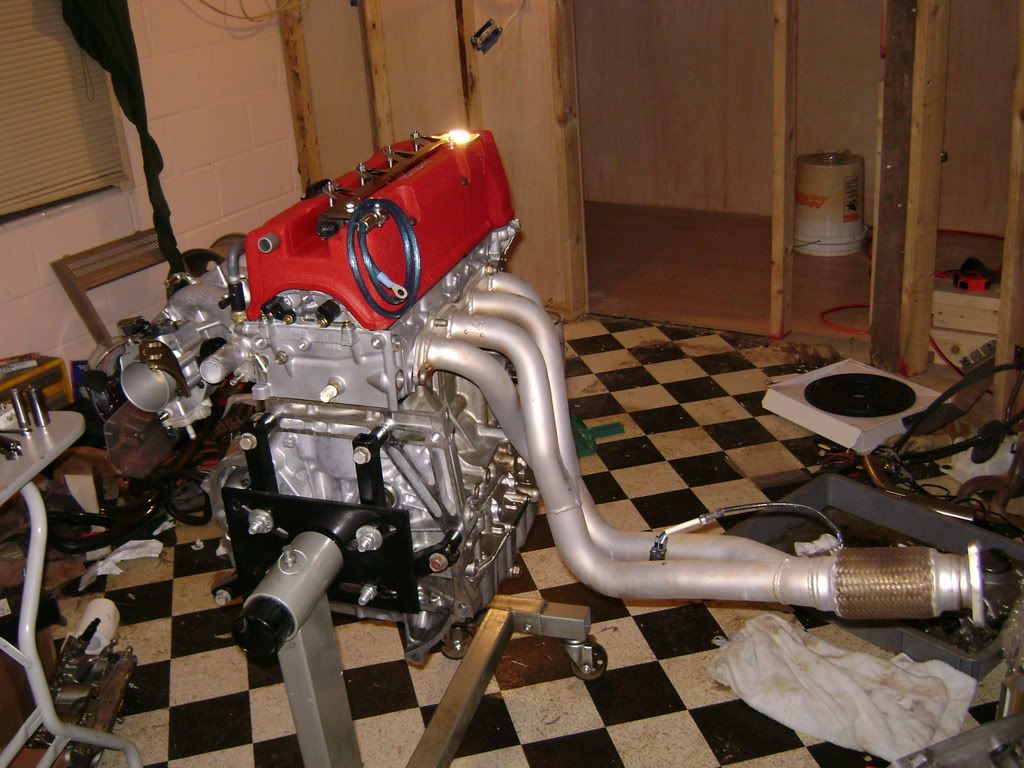

DC swap header

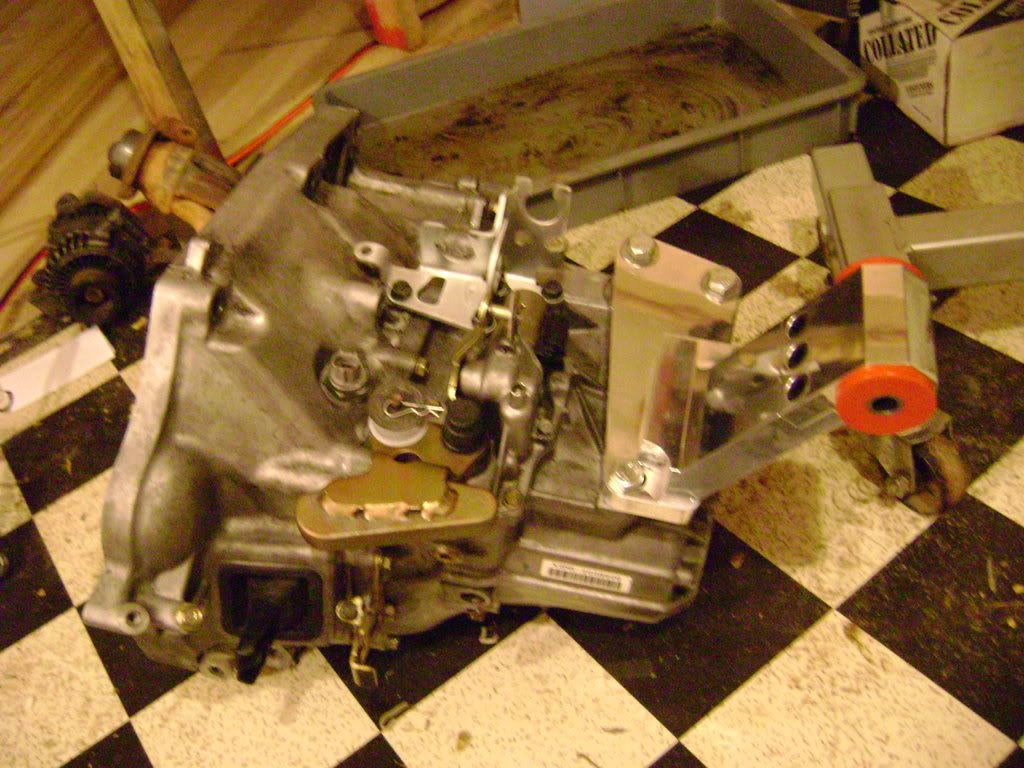

K20A2 6 speed trans with Factory LSD{Thanks Colin}
Type-S shift cables and shifter
Karcepts shifter adapter
9lb chromoly flywheel{Thanks Chunky}

Hybrid Racing mounts, conversion harness, and axels

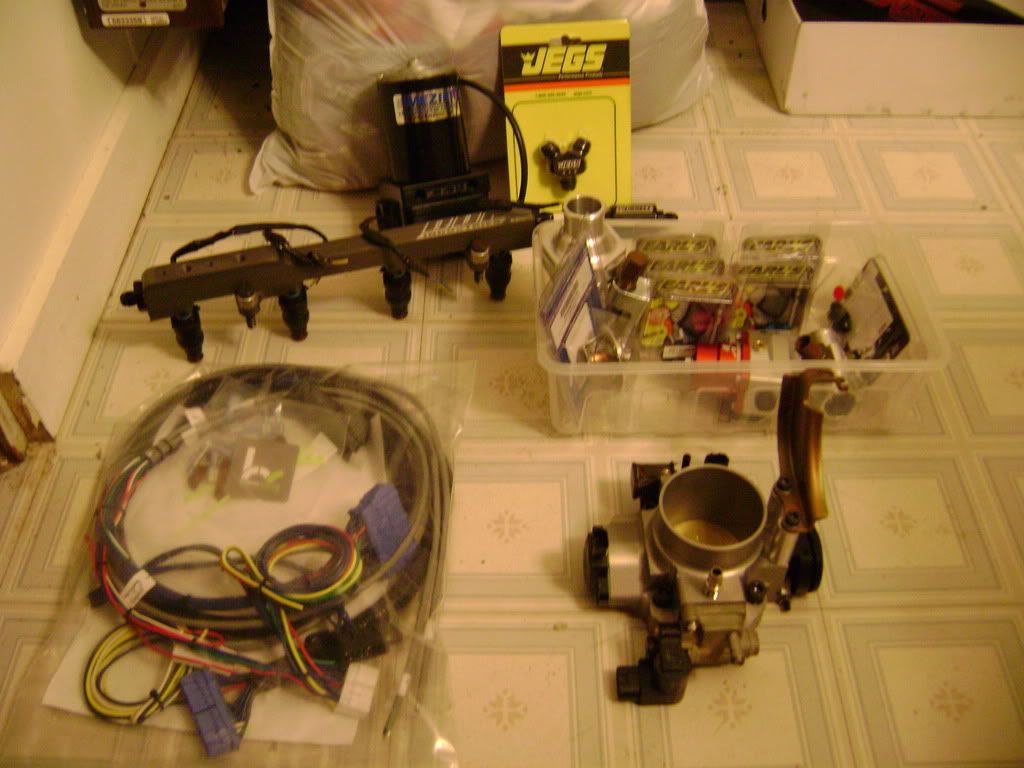

Hondata K-PRO also from Hybrid

K-Tuned water pump block off plate, Mezeire pump, and traction bars

...and a whole bunch of fittings for my fuel and coolant system.


Now, on to the pics:p

















·
Premium Member
Joined
·
1,027 Posts
Discussion Starter #2
Now, Started last night getting the engine out and started to prep the bay.

My scab motor for when I sold my B20/Vtec


Comin out....


Not exactly a show car bay:rolleyes:


But it'll get better with a little cleaning:up:


·
Premium Member
Joined
·
1,027 Posts
Discussion Starter #4
Now, I know someone is gonna say "Hey, there's an easier way to take that mount off..." And I know that, but my grinder works just fine, and I have hundreds of cutting disc....so that is what I used:cool:

Tools for the job. ALWAYS use eye protection, and preferably ear protection when doing this kind of task.


Mount to be re-moved


I cut the "ears" off and across the mount to be able to pry it down to the spot welds


Cut the spot welds from in between the mount and the frame rail, and comes right off


Cut across the top of the mount even with the frame rail and pry it up...


Then cut each weld till it's free...


Drive a screwdriver into the top to be able to get to the remaining welds


Cut the last welds and it'll twist right off


Smoothed up with a Tiger-paw, and ready for some paint


Never know it was there


·
Premium Member
Joined
·
1,027 Posts
Discussion Starter #6
Next up is to fit up and drill the holes for the passenger side bracket...


Mark the holes, remove bracket, and drill for the mounting bolts.


Holes drilled, ready for final mounting of bracket


And there it is....


Bolt in rear mount, and your ready.

^^^Now that's a well built mount!!!! Hybrid Racing FTMFW!!


·
Premium Member
Joined
·
1,027 Posts
Discussion Starter #9

·
Premium Member
Joined
·
1,027 Posts
Discussion Starter #12

·
Premium Member
Joined
·
1,027 Posts
Discussion Starter #16
Build-up looks good man.
Thanks

Since you had to grind down to bare metal on the frame rail, I would suggest removing the swap mount brackets and painting the frame rail behind them with rust inhibiting primer.
Trying to find some dupli-color now, just was in that mood to get stuff done this morning:up:

Nice, you sure showed that heater core who's boss.
Getting replaced anyways. Soft ass junk bent with hardly any pressure.


·
Premium Member
Joined
·
1,027 Posts
Discussion Starter #18
Thanks guys:up: Well I got a chance to get a little done today. Got what I needed as far as my fuel system done, the rest will have to be completed when the engine gets set in place, and got some work done on the chassis harness and inside the car.

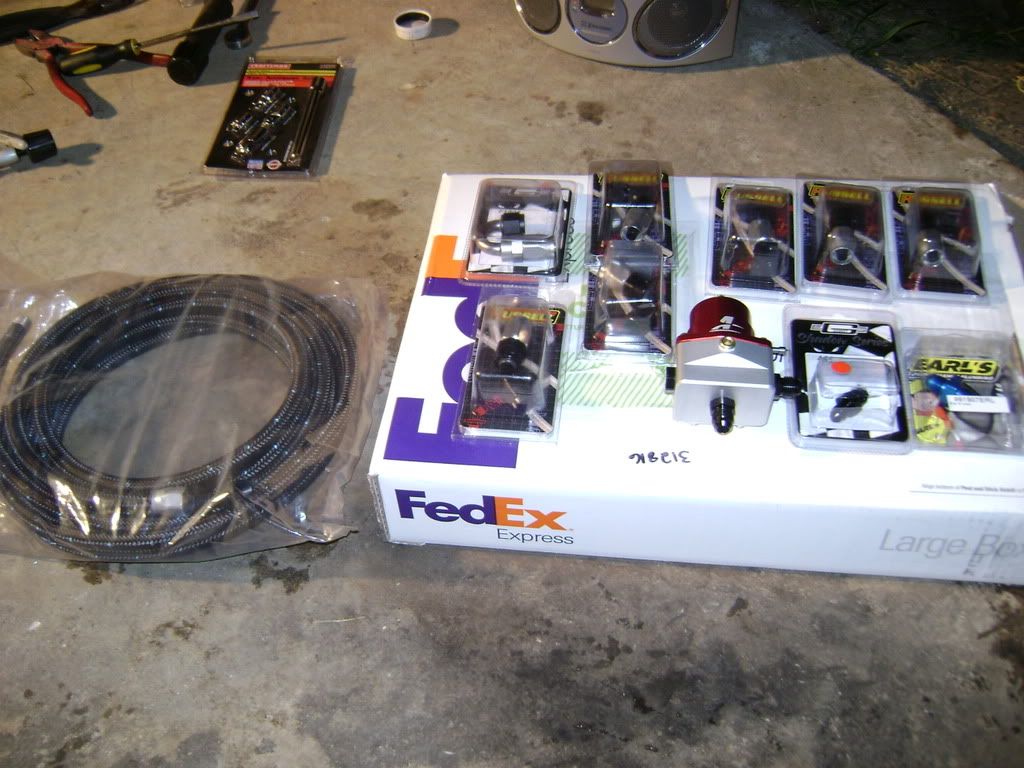

Flare tool, fittings for feed and return line, and tube cutters.


Feed line cut to length and ready to be flared


Line locked into place and flared


Feed line done


Repeat process on return line and ready to run the line


Next up is to mount the FPR in place and start measuring for the feed line and return


My man Richie working on the dash.


Alabama critters:wow:


Dash removed


Evaporator and heater core removed


Blower motor out to have access to chassis harness


Fuse box removed to unplug harness' and to remove tape and loom to relocate under the dash


Me messing with the harness


Thanks for lookin guys:cool:
